Specification

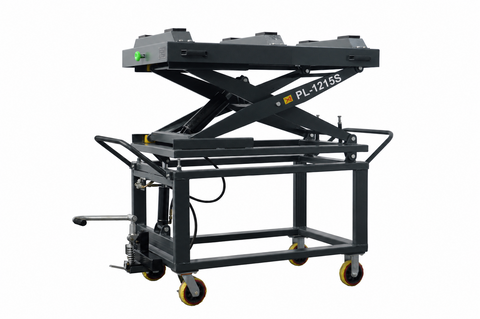

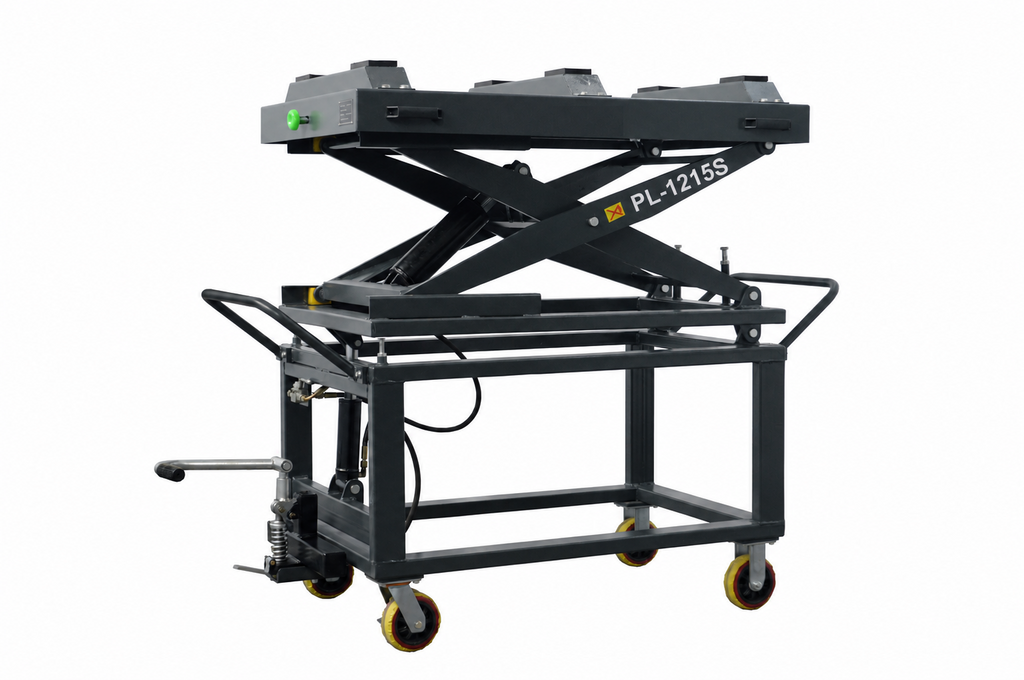

Battery Removal Lift PL-1215S
PL-1215S is a manual battery removal lift specially designed for the safe and efficient installation and removal of battery packs from new energy vehicles. With a 3300 Lbs. lifting capacity, 71 Inch maximum lifting height, and a 50 Inch × 32 Inch support platform, it provides stable and precise positioning for battery pack service.
Specification
Lifting Capacity: 3300 Lbs.
Maximum Lifting Height: 71 Inch
Minimum Height: 45 Inch
Maximum Tilting Angle: 6°
Platform Length: 50 Inch
Platform Width: 32 Inch
Platform Lateral Adjustment: 0-1.18 Inch
Operation: Foot Pedal Hydraulic Operation
Drive Type: Manual Hydraulic
Feature
Key Feature
- Manual Foot-Pedal Hydraulic Operation
Manual foot-pedal hydraulic operation provides fast or slow lifting and smooth, controlled lowering for convenient and stable operation. - 6° Tilting Function
The platform can tilt up to 6°, making battery installation and removal easier when the vehicle is not positioned horizontally. - Precise Height Control
A height-position control system accurately controls the lifting height and automatically cuts off power when the preset safety height is reached. - 0–1.18 Inch Lateral Adjustment
After releasing the locking mechanism, the battery platform can move laterally by 0–1.18 Inch, allowing precise alignment between the battery mounting holes and vehicle mounting points. - Explosion-Proof Safety Valve
Equipped with an explosion-proof valve to enhance hydraulic system safety and provide additional protection during battery removal and installation. - Heavy-Duty 360° Swivel Casters
Heavy-duty 360° swivel casters allow the lift to be easily moved and securely locked in position when required. - High-Voltage Insulation Protection
A high-voltage insulation protection pad provides additional electrical safety during high-voltage battery service operations.
Shipping and Handling Information
- In stock for immediate shipping
- Free shipping IS NOT included for residential addresses. An extra charge will be applied for residential delivery and for lift gate service, but a trucking company local terminal pick up option is available for the buyers as well, there is no additional charge for a local terminal pick up.
- Free freight is included in the price. We only ship within the lower U.S.A 48 states. This does not include Alaska, Hawaii, Puerto Rico, Virgin Islands, Mexico, or Canada. Please call or email us for shipping costs to these places.
Return Policy
- Merchandise with the original packaging may be returned within 7 days of purchase date for a full refund.
- Opened and salable merchandise may charge up to 10% restocking fee.
- Buyers need to pay return shipping costs.
